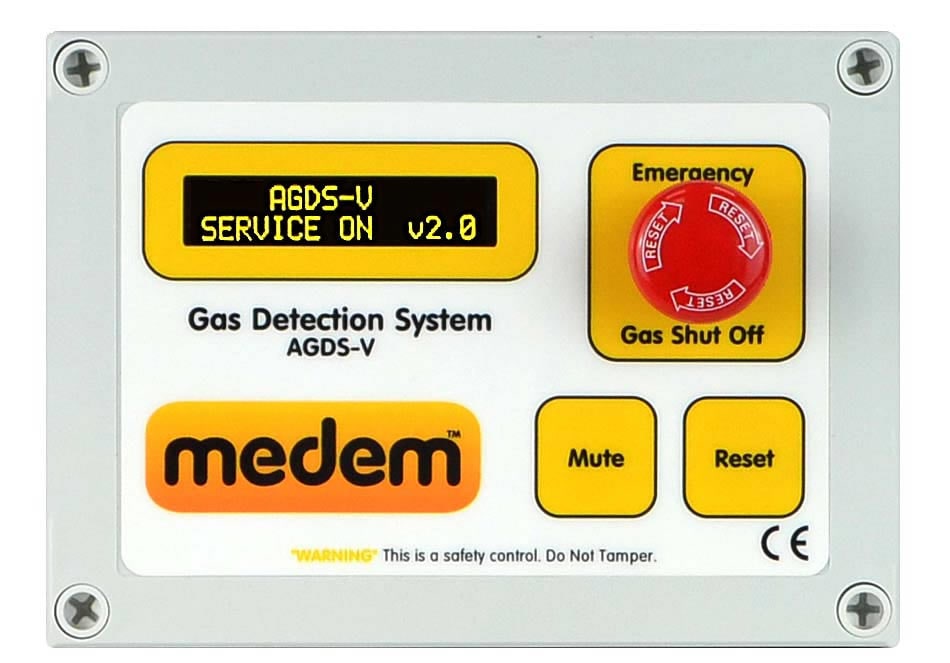

AGDS-V Four Channel Gas Detection System with Valve Isolation

The AGDS-V is a four channel gas detection system designed for valve isolation in boiler houses, plant rooms and areas with a risk of gas escape or build up.

Tell Us About Your Project

Product Specification

The AGDS-V is a gas detection system with gas valve isolation.

In the event of a high alarm from one of the detectors, the system will isolate the gas valve and operate any configured relays, beacons or sounders. Low alarm indication is also given. The OLED will display appropriate information about alarm situations and detector status..

Features

The OLED will display appropriate information about alarm situations and detector status.

Panel controls include ‘Mute’, ‘Reset’ and Emergency Stop buttons. Remote emergency stop buttons and thermal links can be monitored and there is also a fire alarm input which will close the gas valve when activated.

Remote Indications

There are two change over mains rated relays which can be used to activate a beacon/sounder, a fan or signal to a BMS system.

Each relay is able to be set to report one of the below statuses:

Generic Alarm
Low Alarm
High Alarm
Detector Fault.

Product Features

Gas detection (1-4 detectors)
Multiple different gas types
Clear OLED display

Settable SELV relay (Low/High Alarm, Detector Alert, EM stop & Gas On conditions)
Engineer functions

Gas Detectors

The panel can monitor up to 4 detectors directly.

The current range is:

Click here to find out more about our product warranty

Download Our Detector Location Guide

AGDS-V Four Channel Gas Detection System with Valve Isolation

Specifications

Power	230 VAC – 3 amp fused spur.
Product Dimensions	180mm x 130mm x 60mm
Weight
Temperature Range	-5° to 55°C.
Humidity	20% to 90%RH Non-Condensing.
Ingress Protection	IP64
Housing Material	ABS Plastic
Colour	Grey
Mounting	Wall Mount
Sensors	Pellistor, Toxic, Oxygen, NDIR.
Outputs & Connections	2x Potential free change over relays. (Mains rated)
	1x 12volt supply rails.

Alarm Types

Fixed low and high alarm peak levels, high alarm activation will latch and isolate the connected gas valve.

Low & High Alarms

Methane/Natural Gas (CH₄) & Propane (C₃H₈)

5% Low alarm
10% High alarm

Carbon Monoxide (CO)

20PPM Low Alarm
30PPM High Alarm

Carbon Dioxide (CO₂) – Selectable

2800PPM
5000PPM

Oxygen (O₂) Depletion

19.5% Pre Alarm
18% Full Alarm

AGDS-V Four Channel Gas Detection System with Valve Isolation Manuals and Standards

Product and Installation Guides

AGDS-V Product and Installation Guide

Related Standards

Building Bulletin 100, Design For Fire Safety In Schools

AGDS-V Four Channel Gas Detection System with Valve Isolation Warranty and Service

All our products come with a 5-year warranty

Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of its products.

This applies to the main panels and sender units, gas detectors carry a 2-year warranty.

Why not let us install your system and receive a 10-year Warranty?

Where we’ve commissioned an installed system, the warranty is extended from five to ten years. At the time of commissioning, photos and gas pressure readings are recorded along with other relevant details of the installation. A 24-hour helpline number and the serial number is attached with the panel and all details are then entered on to the Medem database.

Service

The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependant on gas type and environment. Medem offers cost-effective yearly service plan options which include detector exchange to assist in service budgeting
