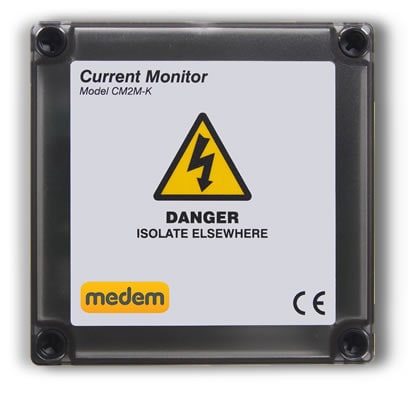

CM2M-K Current Monitor
The CM2M-K is a current monitor designed for use with Medem ventilation interlock systems.
Flexibility
Each CM2M-K can be used to interlock 2 fans, the fans are connected by taking the live feed for each fan through the current monitor (before any speed controllers/inverters).
Fan load sensitivity range on each fan is 30 milliamps to 24 amps (max).
Features and Details:
There are 3 LED indications:
- 1x Green, for the 12-volt power to the CM2M-K.
- 2x Red, one for ‘Fan A’ and another for ‘Fan B’ load detection.
When the fans are switched on and the load is detected (installation instructions) the corresponding side’s NO/NC contact will close and the red LED will light, this will flash for the first 15 minutes after current detection and then become solid. The flashing LED helps us to identify a fan intermittently stalling.
Product Features
- Compact
- LED sequence to aid intermittent fan fault identification
- Wide monitoring range
- Multiple units can be series wired
- Large sensitivity range, 30 milliamps to 24 amps (max)
- Can be used with 3 phase by selecting a single phase to monitor
CM2M-K Current Monitor
Product Dimensions
130mm x 130mm x 60mm
CM2M-K Current Monitor Manuals and Standards
Product and Installation Guides
CM2M-K Current Monitor Warranty and Service
All our products come with a 5-year warranty
Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of its products.
This applies to the main panels and sender units, gas detectors carry a 2-year warranty.
Why not let us install your system and receive a 10-year Warranty?
Where we’ve commissioned an installed system, the warranty is extended from five to ten years. At the time of commissioning, photos and gas pressure readings are recorded along with other relevant details of the installation. A 24-hour helpline number and the serial number is attached with the panel and all details are then entered on to the Medem database.

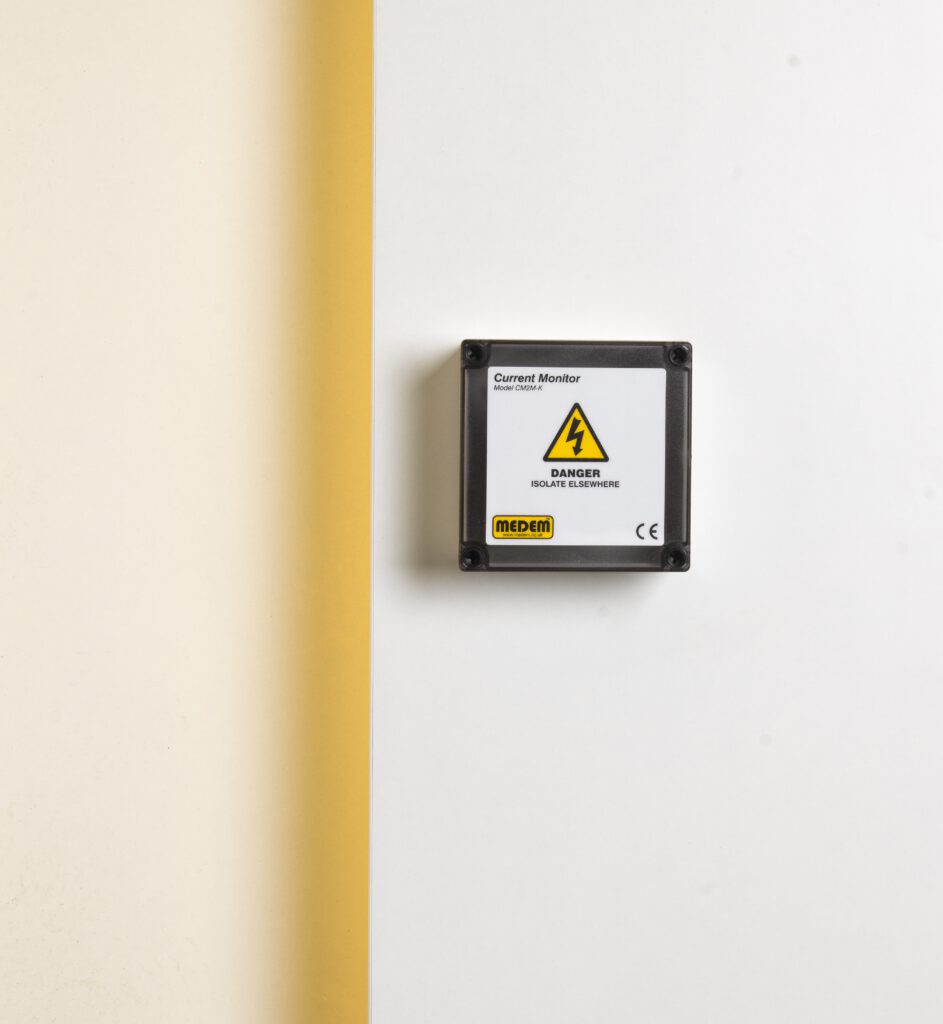

CM2M-K Current Monitor Image Gallery
