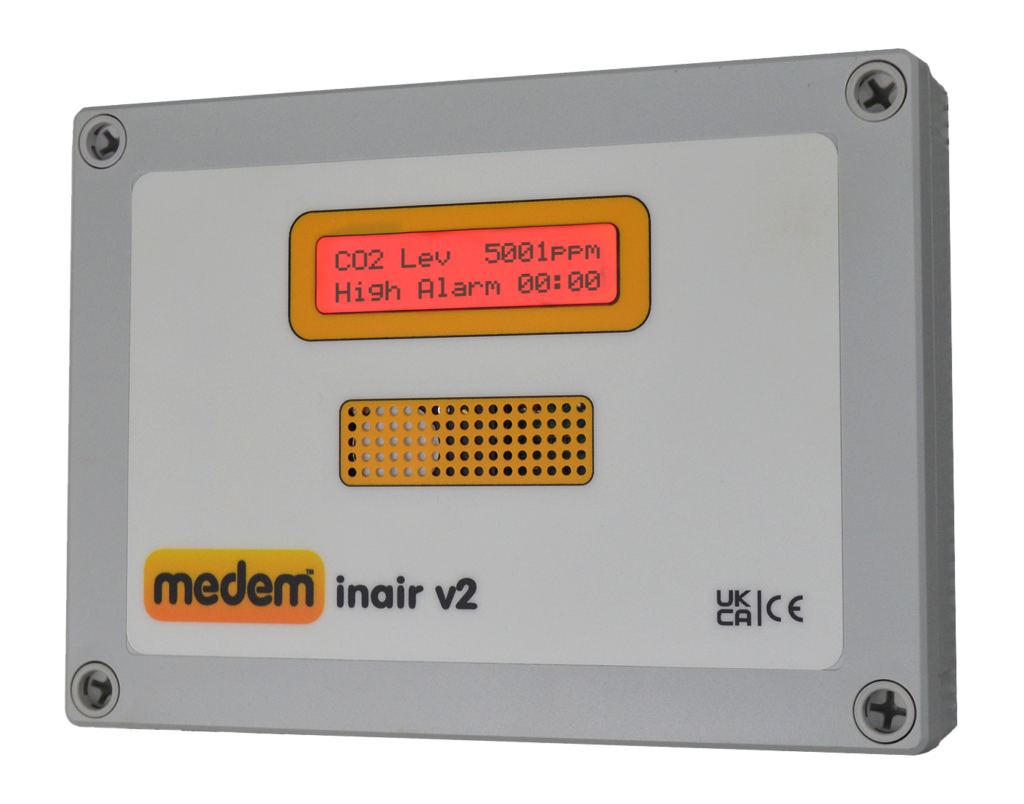

InAir v2 CO2 Detection & Monitoring System

The InAir CO2 is a standalone CO2 detector designed for built environment. Using a green, amber, red display the system provides clear indication of the system status.

Tell Us About Your Project

Product Specification

CO2 Detection & Monitoring

The InAir v2 CO2 detection system uses a high-quality non-dispersive infrared (NDIR) sensor alongside an optional temperature sensor to monitor air quality and raise an alarm when a given threshold is met. It has multiple selectable alarm levels, making the system adaptable for different applications. With the ability to view minimum, maximum and average CO2 levels and a color-changing LCD for “traffic light” style indication, it provides quick and easy monitoring of air quality.

CO2 levels can be used as an early indicator of deteriorating air quality within the built environment, in commercial kitchens and teaching areas in education buildings in line with BB101, IGEM/UP11, UP19 and BS6173.

It is also used commercially in laboratories, production and the drinks and leisure industry where CO₂leak detection monitoring is required.

Optional displays

The InAir v2 has options for viewing the minimum, maximum and average CO2 levels over the last eight hours, in addition you can also view every 15min average over that period.

Temperature can be displayed on screen if required

The system also has a protentional free relay and 0-10v fan speed control outputs for use with existing air management systems.

Product Features

Settable alarm levels for different applications
Traffic light style level indication
Internal tone
Min, max and average CO2 levels

Optional temperature display
Potential free relay
0-10v Fan Speed Control
Engineer functions

Click here to find out more about our product warranty

InAir v2 CO2 Detection & Monitoring System

Product Dimensions

180mm x 130mm x 35mm

Gas Detection For Environment Monitoring

The system can monitor for CO2 at various alarm levels depending on the application.

The system can also be connected to any of our gas detection or proving systems as a detector if required

Alarm Types

The system has a traffic light style display the changes between green, amber and red dependent on the alarm settings

Peak Alarms

Classroom – Non Gas – Naturally Ventilated

1500PPM Low alarm
2000PPM High alarm

Classroom – Non Gas – Mechanically Ventilated

1000PPM Low alarm
1500PPM High alarm

1 k Mode

800PPM Low alarm
1000PPM How alarm

5k Mode

2800PPM Low alarm
5000PPM High alarm

10k Mode

5000PPM Low alarm
10000PPM High alarm

InAir v2 CO2 Detection & Monitoring System Manuals and Standards

Product and Installation Guides

InAir v2 Product and Installation Guide

Related Standards

IGEM/UP11, Edition 3, Gas Installations For Educational Establishments

Building Bulletin 101, Ventilation Of School Buildings

“>IGEM/UP/19, Edition 2, Design And Application Of Interlock Devices

“>British Standard 6173:2020 Relating To Commercial Kitchens

InAir v2 CO2 Detection & Monitoring System Warranty and Service

All our products come with a 5-year warranty

Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of its products.

This applies to the main panels and sender units, gas detectors carry a 2-year warranty.

Why not let us commission your system and receive a 10-year Warranty?

Where we’ve commissioned an installed system, the warranty is extended from five to ten years. At the time of commissioning, photos and gas pressure readings are recorded along with other relevant details of the installation. A 24-hour helpline number and the serial number is attached with the panel and all details are then entered on to the Medem database.

Service

The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependent on gas type and environment. Medem offers cost-effective yearly service plan options which include detector exchange to assist in service budgeting
